Pulverisor
Download Brochure
AN Ideal mill to grind anything like ( Spices, Haldi, Mirch, Chemicals) The Pulverising is done in mid air by hammers, unlike friction grinding in other grinding mills. The ground meal, therefore is ( Cold and Retains its flavours). The meal is then sieved and pneumatically carried to the cyclone for convenient bagging.
Model
Size
Capacity Shift 8 hrs.
Power
SEW - A
9" x 4"
5-6 Kg.
2 H.P
SEW - B
13" x 5"
15-20 Kg.
3 H.P
SEW - C
16" x 7"
45-50 Kg.
5 H.P
SEW - D
18" x 8"
80-85 Kg.
10 H.P
SEW - E
20" x 10"
200-225 Kg.
20 H.P
SEW - F
21" x 12"
300-350 Kg.
30 H.P
SEW - G
24" x 14"
400-450 Kg.
40 H.P
pulverisor/pulverizor

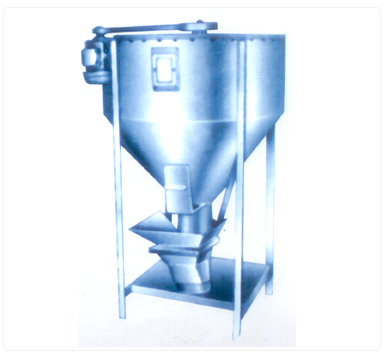

Whirlwind Mixer


These vertical type mixers are most ideal dry mixing. The Principal is not to stir or tumble but to whirl the ingredients the mixing chamber. Vertical screw conveyor lifts the ingredients to top, where mixing paddles whirls particles to the wall of mixing chamber following to the bottom. This mix is lifted and whirled again & again to give homogenous mix. The biggest advantage of this type mixer is that both feeding and discharge are ground level.

whirlwind mixer
